Plough Shear mixer



Plough Shear Mixer

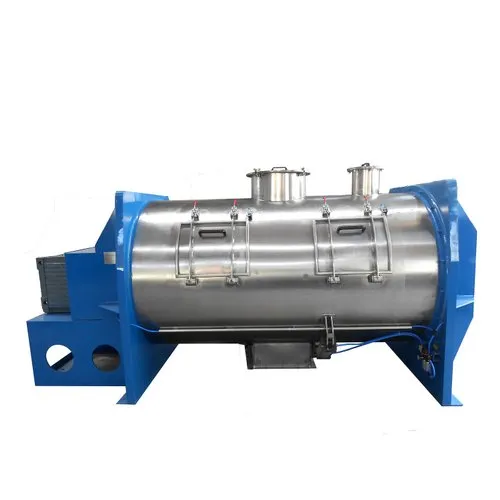

plough shear mixer

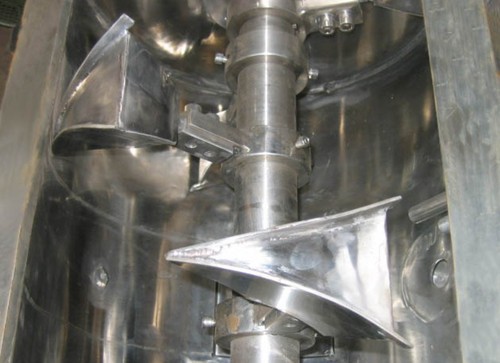

plough shear mixer blade



working principle

The plough shear mixer consists of a cylindrical drum containing plough shaped mixing elements that are mounted on a horizontal shaft. The agitator's shaft is positioned in the centre of the drum and has welded / bolted arms on which the "Plough" shaped mixing elements are mounted. The plough shear mixer gets its name because of these plough shaped mixing elements. Independently driven high-speed choppers may be installed to disperse agglomerations and control granulation during the mixing process

In operation, material is loaded through the top inlet. The working volume of the plough shear mixer ranges from 30% to 60% of the plow tooltotal drum volume. The shaft rotates at higher speed, producing a plough tip speed of more than 200 meters per minute to effect a fluidizing action. The ploughs throw the material upward, and the material settles in a random pattern. The size, shape, positioning, and peripheral speed of the ploughs are coordinated in such a way that they produce a whirling, three-dimensional product movement. The turbulence and material movement within the mixer container prevents formation of dead-spots or low-movement zones and ensures fast and homogenous mixing. The ploughs are designed to lift the material from the inside wall of the container without squashing the particles against the wall

Drive Design::

Considering product density, volume and moisture content, we will design the drive unit for each application individually. Specifying the right drive requires effective communication between the equipment manufacturer and buyer to identify key process needs.

  • Empty load start;
  • Full load start;
  • Variable speed mixing;

Plow Tool Design:

According to different processed materials, plow shapes and arrangement could be tailor designed.

  • Plow;
  • Plow with teeth;
  • Paddle scrape;

Application:

The batch plough shear mixer is the most versatile mixer type available with an extensive range of applications:

  • Dry powder mixing – e.g. food flavoring/ additives, sponge/cake mixes, cosmetics, pharmaceuticals, cement, powdered rubber
  • Paste mixing – e.g. biscuit creams, dough, PVC pastes, car body fillers/putties, sugar/marzipan paste, toiletry pastes, tile adhesives and grouts
  • Mixing of wet slurries – e.g. filter cake re-slurrying, dough, fiber glass resin dough putty Wet granulation
  • Liquid coating of powders and granules
  • Fat and oil incorporation
  • Vacuum drying
Plough Shear Mixer has applications in the following industries:
  • Plough Shear Mixer Used In Detergent Manufacture
  • Plough Shear Mixer Used In Detergent Manufacture
  • Food Flavoring
  • Sugar
  • Chemicals
  • Pharmaceuticals
  • Ceramics
  • Agrochemicals
  • Adhesives
  • Brake linings
  • Confectionery products
  • Detergents
  • Waste treatment
  • Fiber Glass
