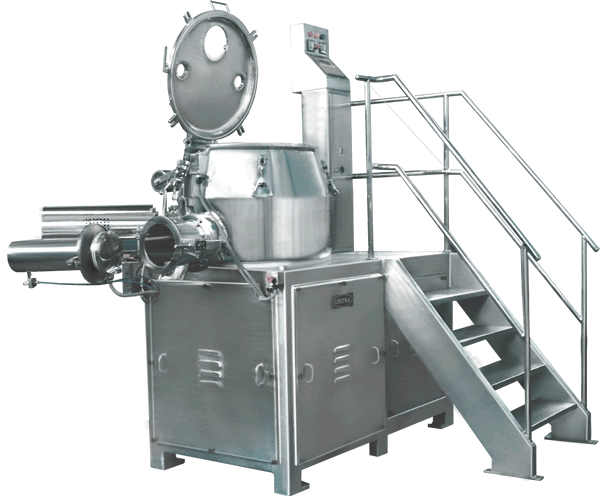

Rapid mixer granulator is used for granulation in pharmaceutical manufacturing. Impellers and choppers are responsible for uniform mixing and granule formation.
Rapid mixer granulator is widely used equipment in pharmaceutical manufacturing. It is used to mix the pharmaceutical ingredients and make the granules before compression. Impellers and chopper are mainly responsible for wet granulation in the rapid mixer granulator. These blenders are precisely designed to impart the complete linear and radial motion for effectively mixing the homogenous material. We offer them in different configurations and can be customized as per the preferences. With an experience of over two decades in handling the various process applications in Dyes, Intermediates, Pigments, Pesticides, Fine Chemicals, Rubber Chemicals, Bulk Drugs, API and Nutraceuticals.
Impellers: Impellers are fixed at the bottom of the dome shaped stainless steel bowl. It has two full length and two half length blades. These impellers are designed in such a way that small blades lift the material and full length blades push the material to mix well. These impellers break up the wet mass into small pieces and granules.
Chopper: These are specially designed small blades located at the bottom of the dome. It rotates at high speed (1440/2880) RPM to give easy and uniform granulation. Chopper cuts the wet lumps of material into small sized parts those are mixed equally by the impellers and its speed is responsible for the size of the granules. Chopper doesn't have any significant effect on the granule size when impeller speed is high (above 200 RPM).
Discharge Port: A discharge port is located horizontally at bottom of the dome. Granules are unloaded in the container through the discharge port. Opening of discharge port is operated by a compressed air regulated cylinder known as pneumatic cylinder that requires 3-5 kg/cm2 pressure of compresses air.
